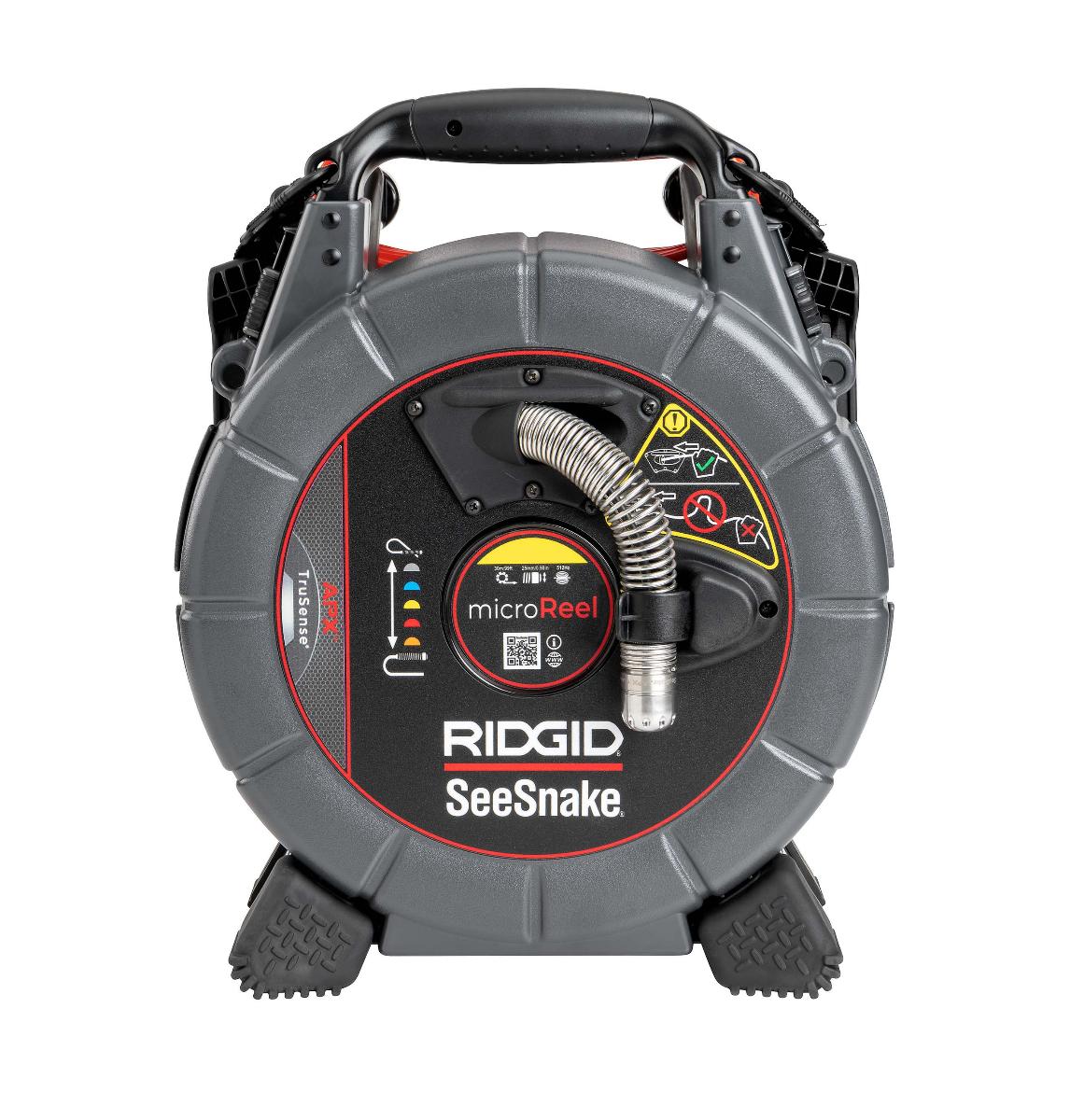

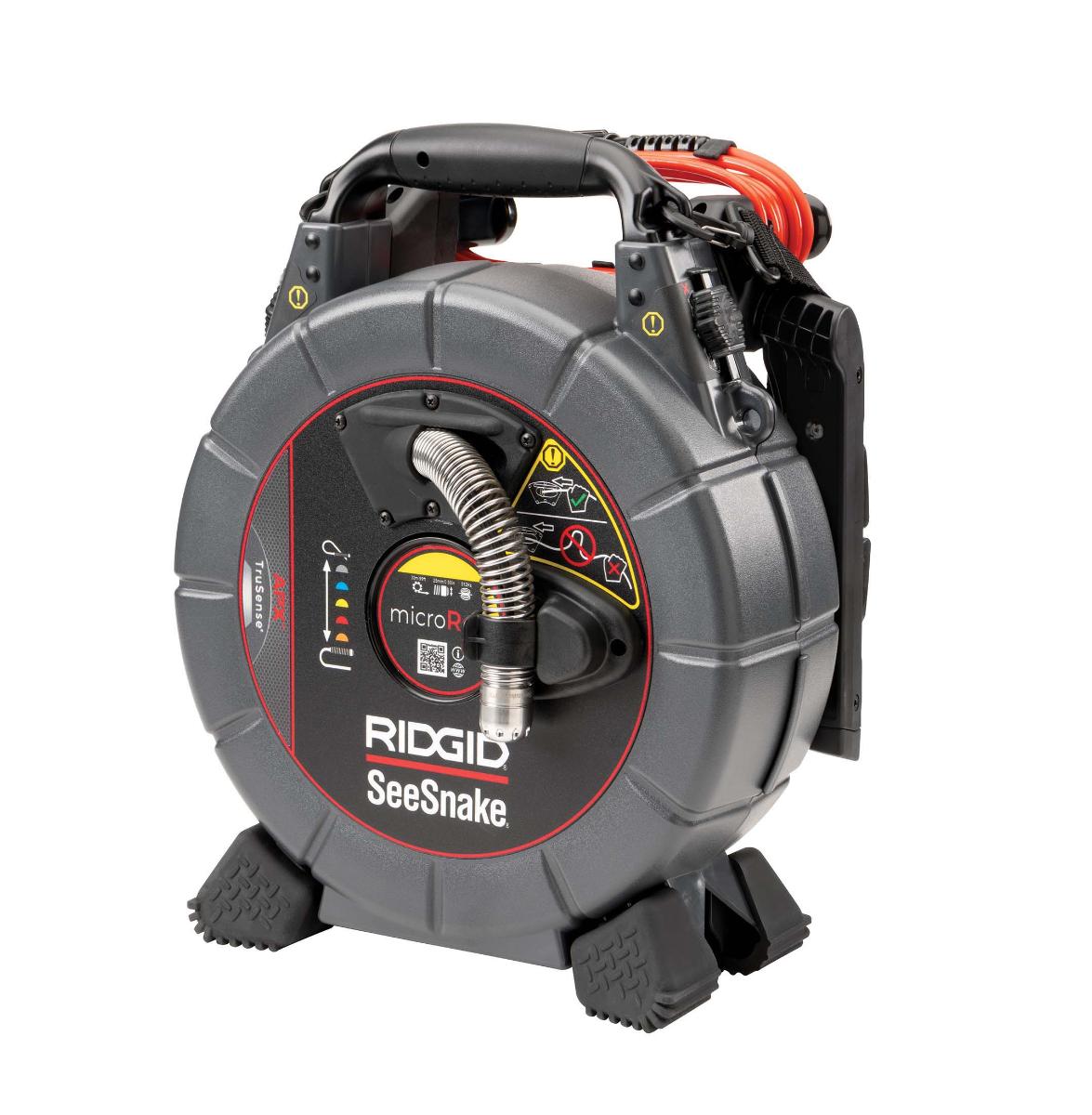

Ridgid 70808 SeeSnake microReel APX with TruSense Technology
SeeSnake microReel APX with TruSense Technology
Features:
• The RIDGID SeeSnake microReel APX with TruSense is a lightweight, compact and portable diagnostic inspection camera. It offers enhanced camera functionality including TruSense technology and auto-image rotation for bright, clear in-pipe images and on-screen camera angle and image orientation feedback
• The microReel APX includes a kickstand for use with the CSx Via™, and offers enhanced stability and usability when positioned at a 45° angle.
• Enhanced camera functionality- APX camera reels offer TruSense technology with an HDR image sensor for superior in-pipe viewing and on-camera TiltSense inclinometer.
• Auto-image flip - Rotates camera image without any moving parts.
• Durability- Hardened stainless steel camera head & spring assembly is durable and reliable for a long service life.
• Versatility- Multi-monitor compatibility with existing SeeSnake monitors.
• Easy navigation- Mid-flex push cable ideal for small diameter (1 1/2" to 4" / 40 to 101 mm) and tight-turn radius inspections up to 100' (30m).
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Transfer Method | USB Drive |
| Power Source | 18 V Li-ion rechargeable battery or AC adapter |
| Colour | Grey |
| Supplier Code | 70808 |
| Height | 411mm |
| Push Cable Minimum Bend Radius | 2.5 in (64 mm) |
| Width | 224mm |
| Warranty | Full Lifetime Warranty Against Material Defects & Workmanship |
| Push Cable Diameter | 0.27 in (6.7 mm) |
| Camera Diameter | 25mm |
| Weight | 5.8Kg |
| MOQ | 1 |
| Brand Name | Ridgid |
| Drum Diameter | 12 in (305 mm) |
| Push Cable Length | 100 ft (30 m) |
| Country of origin | United States |
| Product Type | SeeSnake |
| Length | 337mm |
| Camera Type | Fixed |
| Sonde | 512 Hz, Integrated |
| Barcode | 0095691708083 |
| Line Capacity | 1 1/2 to 4 (40 mm to 101 mm) |
| Packaged QTY | 1 |
| Resolution | 640 x 480 pixels |
